| Place of Origin: | Henan, China (Mainland) |
|---|---|
| Brand Name: | RECTA |
| Model Number: | DF4T |
| Automation: | PLC |
| Condition: | New |
| Type: | Other |
| Min. Unit of Measure: | Pieces |
|---|---|
| Min. Order Quantity: | 1 |
| FOB Price: | USD 13000.000 - 0.000 |
| Port: | shanghai |
| Delivery Time: | 30days |
| Packaging Details: | wood pallet |
| OEM: | Yes |
| Production Capacity: | 50 / Year |
| Payment Terms: | L/C, D/P, T/T, Western Union |

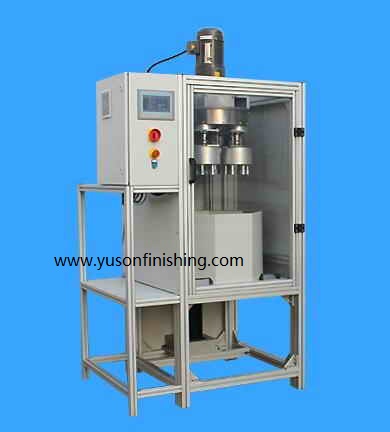

drag finishing machine
Drag Finishing Machine:
Drag finishing machine features as high automation degree, fine looks, easy operation, and wide range of speed adjustment, smooth running, and low noise, equipped with 1 each one level and 4 each two level rotating disks driven by K series reducer motor, with 6 teams rotatable and quick dismantled clamp on the each two level rotating disk, and it is installed automatically lift device and movable vessel, as the best high- efficiency machine for cutting tool line.
Features:
easy operation, wide range of speed adjustment, and low noise, Siemens brand pLC.
| Model | container Volume ( L) |
Holder interfaces |
Spindles speed ( RPM) | Motor power ( kw) |
Weight ( kg) |
Dimension (mm) |
| DF3T | 90 | 3 x 6=18pcs | 0-120 | 2.2 | 350 | 1160x950x2000 |
| DF3T-S | 90 | 3 x 6=18pcs | 0-120 | 2 + 0.5 | 350 | 1160x950x2000 |
| DF3T-X | 90 | 3 x 6=18pcs, inclined | 0-120 | 2.2 | 350 | 1160x950x2000 |
| DF3T-XS | 90 | 3 x 6=18pcs, inclined | 0-120 | 2 + 0.5 | 350 | 1160x950x2000 |
| DF4T | 85 | 4 x 6=24pcs | 0-120 | 2.2 | 350 | 1160x950x2000 |
| DF4T-S | 85 | 4 x 6=24pcs | 0-120 | 2+0.5 | 350 | 1160x950x2000 |
| DF6T | 85 | 6 x 4=24pcs | 0-120 | 2.2 | 350 | 1160x950x2000 |
| DF6T-S | 85 | 6 x 4=24pcs | 0-120 | 2+0.5 | 350 | 1160x950x2000 |
